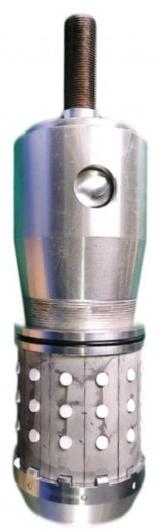

Ball-in-Place Dissolvable Bridge Plug

The ball-in-place dissolvable bridge plug is designed for fracturing operations temporary plugging of oil and gas well completion stage in a short period. After finishing the sealing work. It will dissolve quickly in well fluid by itself.

The design of the dissolvable bridge plug uses the conventional Baker Baker10#/20# setting tool to set. The special adapter is connected to the bridge plug. When the bridge plug is pumped to the predetermined setting position, the setting tool pushes the thrust rod to move the bridge plug downward and compress the slip for setting. After the bridge plug is set, release the thread cutting, pull the setting tools and joint to achieve the bridge plug release successfully.

TINVO's ball-in-place dissolvable bridge plug has a simple structure and stable performance in well completion; all its components, such as dissolvable magnesium alloy are fully 100% soluble, it takes advantage of eliminating the ball drop time, checks the sealing immediately, saves water, and reduces the exploration cost greatly.

*** If you have special requirements, contact us to be customized.

Model and Parameter
