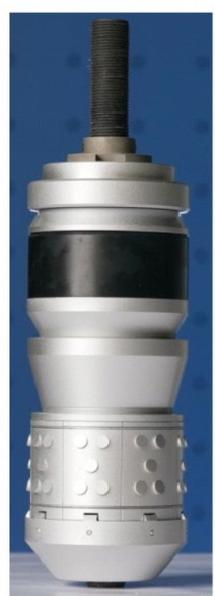

Mono Slip Dissolvable Bridge Plug

The mono-slip dissolvable bridge plug is designed for fracturing operations temporary plugging of oil and gas well completion stage in a short period. After finishing the sealing work. It will dissolve quickly in well fluid by itself.

The design of the dissolvable bridge plug uses the conventional Baker Baker10#/20# setting tool to set. The special adapter is connected to the bridge plug. When the bridge plug is pumped to the predetermined setting position, the setting tool pushes the thrust rod to move the bridge plug downward and compress the slip for setting. After the bridge plug is set, release the thread cutting, pull the setting tools and joint to achieve the bridge plug release successfully.

TINVO's dissolvable frac plug has a simple structure and stable performance in well completion; all its components, such as dissolvable magnesium alloy and elastomer are fully 100% soluble, it takes advantage of eliminates the ball drop time, checks the sealing immediately, saves water, and reduces the exploration cost greatly.

*** If you have special requirements, contact us to be customized.

Model and Parameter
