Two-ribbed Cold Rolling Mill

The two-rib rolling mill adopts positive two-rib forming hi-frequency quenching and tempering technology. The final product can be equal to Grade III steel.

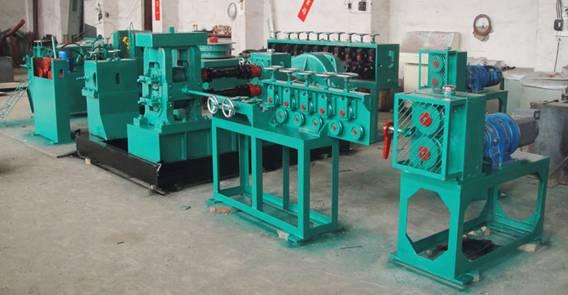

Two-ribbed Cold Rolling Mill


two-rib rolling mill

Introduction

The two-rib cold rolling mill adopts positive two-rib forming high-frequency quenching and tempering technology. The final product can be comparable to Grade III steel. The appearance is black and blue, the thread is clear and plump, and the yield strength and tension are better than ordinary cold rolled ribs steel and Grade III steel, 500MPa high strength steel fully meet the requirements of the building requirements. The two-rib cold rolling mill produced by our company can be divided into small two-rib cold rolling mill, medium-sized two-rib cold rolling mill and large two-rib cold rolling mill, which can meet the different needs of customers.





Specification

Item

Small-sized

Medium-sized

Large-sized

Raw material diameter (mm)

Φ6.5-10

Φ6.5-12

Φ6.5-16

Roll diameter(mm)

Φ200

Φ228

Φ228

Power(KW)

55-75

75-110

75-110

Gear center distance(mm)

200

228

228

Rolling speed(m/s)

1.5-2

1.5-3

1.5-3

Cut length(m)

1-12

1-12

1-12

Flying shear motor(KW)

5.5

5.5-11

5.5-11

Finished product(mm)

Φ5-8

Φ5-12

Φ5-14

Yield(Ton/shift)

20-50

20-50

20-50
